Miilux ®Poland
sheet steel work services
We provide full professionalism and high quality products. We offer processing services for sheet steel – both purchased from us and belonging to our customers.
HARDENING
- Annual capacity approx. 20,000 tons of steel sheets and components (depending on sheet size)
- Thickness range 5 – 100 mm
- Max. dimensions 2500x6200 mm
- Through hardening of pieces
SHEETS CUTTING
Oxy-FUEL AND PLASMA CUTTING TABLE
- Two independent portals
- 2 oxygen torches and 3 plasma torches (including 1 3D torch)
- Plasma cutting and bevelling of sheet metal up to 50 mm thick and a chamfer angle up to 45 degrees
- Gas cutting, up to 150 mm thickness
- Workbench dimensions 3000x14000 mm
Laser CO2
- Laser power - 6 kW
- max dimensions of plate - 2500x6500 mm
- max weight of plate - 3200 kg
- max thickness of plate- 16 mm
SEMI-AUTOMATIC GAS CUTTING MACHINES
Laser fiber
- Laser power - 20kW
- max dimensions od plate - 2500x6200 mm
- table load max 400 kg/m2
- 3D head for beveling at an angle of max 45 degrees from vertical
- max thickness od plate - 50 mm
SHEET METAL BENDING
Bending brake
- pressure 600 t
- maximum length of the elements, up to 6000 mm
C-type press
- pressure 250 t

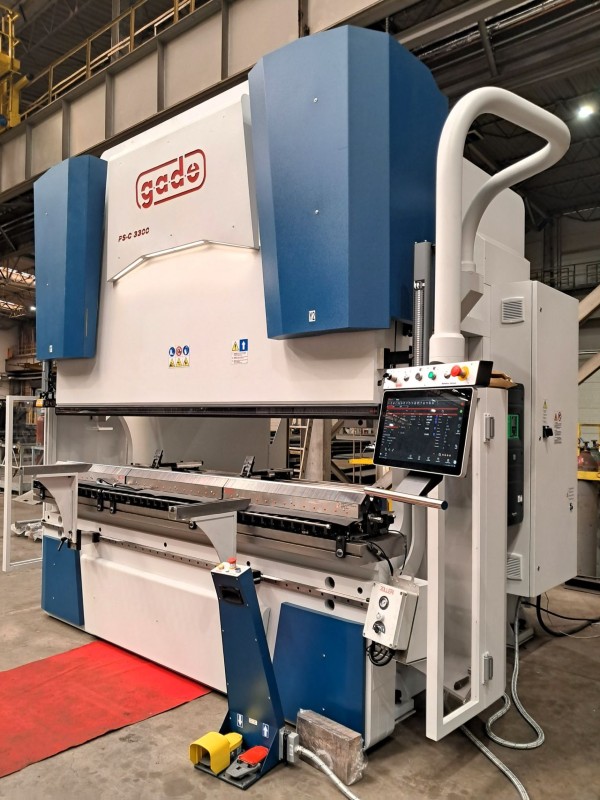

Press brake machine
- Pressing force 300t
- width of bent elements or length of bending line up to 3000 mm
- CNC control
SHOT BLASTING
GIETART PASS-THROUGH SHOT BLASTING MACHINE
- Aperture size 600x2500 mm
- 6 turbines
- Cleaning class up to Sa3
Shot blasting cabin
- cabin dimensions - 16x10x4.35 m (length x width x height)
- shot blasting with broken shot
- Surface cleanness upto Sa3 grade
MACHINING
RADIAL DRILL
- Max drilling diameter ɸ 50 mm
CNC MILLING MACHINE
- Workbench dimensions 1800x860 mm
- Workbench capacity 2000 kg
- Spindle cooling
- Fanuc control system
- X - 1800 mm, Y - 860 mm, Z - 700 mm
MAG (Metal Active Gas) Welding Method 135, 136, 138
- Qualified welding technologies for low-alloy steels and armor steels
- Certified welding personnel for FM1, FM2, and FM5 groups
- We meet the requirements of the PN EN ISO 3834-2 standard (comprehensive requirements)
- We meet the requirements of the PN EN 1090-2 standard
